Mirasol Resources Reports Remaining 2020 Drill Results at the Virginia Silver Project

February 23, 2021
  • Notable intersects:
  • Julia South: 8.50m at 123.43 g/t Ag, including 3.90m at 168.34 g/t Ag
  • Martina SE: 16.05m at 63.97 g/t Ag including 0.90m at 352.32 g/t Ag
  • Phase II drilling ongoing: 1,507m completed in 10 holes

VANCOUVER, BC, February 23, 2021 — Mirasol Resources Ltd. (TSX-V: MRZ) (OTCPK: MRZLF) (the “Company” or “Mirasol”) is pleased to report results from the final twelve diamond drill holes from the Phase I exploration program completed in Q4 2020 at the Virginia Silver Project (“Virginia”), located in Santa Cruz province, Argentina. The program was funded by Silver Sands Corp. under an option to purchase agreement. The drill holes at Julia South and Martina and the previously released holes (see news release January 21, 2021) clearly show the potential for significant new mineralization outside of the current NI 43-101 resource[1] area. Shallow and high-grade mineralization has now been defined in six new zones, including at Julia South, Ely Central and Martina. Mirasol and Silver Sands are continuing to drill extensively with the objective of expanding the mineralized footprint and potentially updating the resource in late 2021.

Mirasol’s interim-President, Tim Heenan, commented: “I am very encouraged with the initial results from our very prospective Virginia silver project. With the results from Phase I in hand, it is clear that the size of the resource has the potential to grow significantly.”

Summary

Phase I drilling completed at Virginia in late 2020, which encompassed 18 drill holes for a total of 2,831m, confirmed the potential to identify new well-mineralized structures that were not previously included in the NI 43-101 resource. All the drilling in Phase I, except for the holes at the Magi target, focused on potential strike extensions along the known trends that host the current resource and also previously untested vein structures.

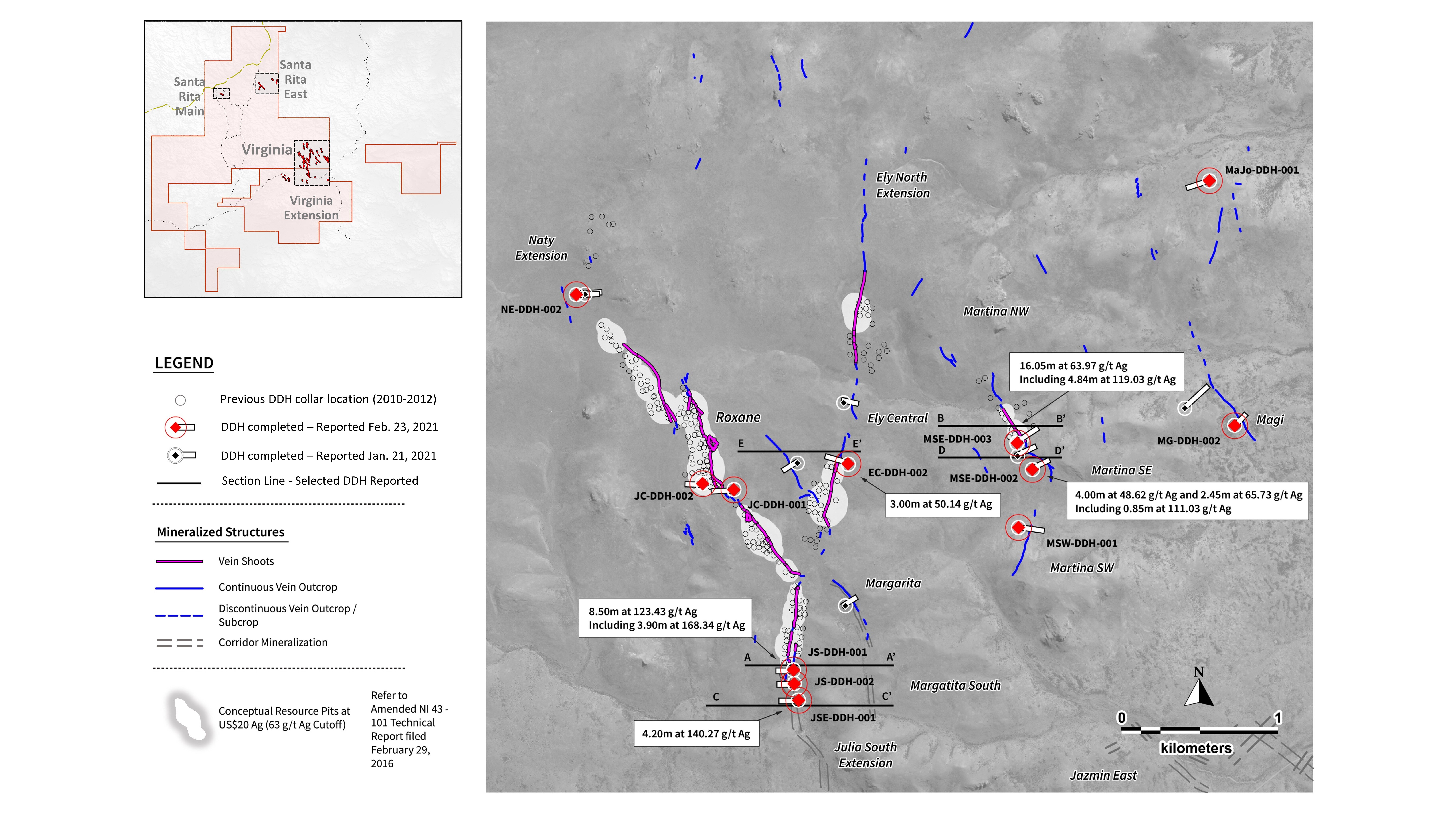

Figure 1: Plan map with the Phase I drill hole locations and conceptual pit shells related to the current resource.

The diamond drill holes reported in this release are considered encouraging and assist in a better understanding of the structural setting, including the recognition of down dropped blocks and post mineralization displacement which is now interpreted to play an important role. In Julia South, this is evident with the upper levels of the vein system preserved in drill holes JS-DDH-001 and JS-DDH-002. As a result, the potential mineralized shoots, that may exist at depth, would be fully preserved, compared to the outcropping Julia shoots further to the north which have been subject to some degree of erosion with high Ag values at surface. This data was incorporated in targeting the ongoing Phase II drill program.

Several drill holes intercepted hematite matrix breccia hosting silica clasts, which is interpreted as being a late structural reactivation hydrothermal event. These hematite breccias typically occur in the higher levels of the mineralized system and are shown to have transported mineralized clasts upwards from deeper parts of the system. Deeper drilling and lateral step-outs in these areas are required to define the geological environment represented by these zones. This concept will also be tested during the current Phase II program.

In summary, the southern and eastern parts of Virginia are interpreted to represent the higher and cooler levels in the epithermal/hydrothermal system and also a higher level in the local volcanic stratigraphy.

The drill results are summarized below with assay results reported in Table 1.

Drill Results Review

  • Julia South Target: JS-DDH-001

The Julia South hole JS-DDH-001, collared 100m south of the previous drill holes incorporated in the conceptual pit confined resource, intersected an 8.5m thick brecciated structure grading 123.43 g/t Ag, including 3.90m at 168.34 g/t Ag. Colloform to crustiform banded crypto crystalline vein fragments with sulfides returned a peak result of 271 g/t Ag over 0.33m. This intercept is hosted in low temperature late cross-cutting chalcedonic silica with a latter and final manganese oxide (MnOx) rich pulse. Minor hydrothermal breccia structures with Ag anomalies exist throughout the hole. It is interpreted that this hole sits within a downthrown structural block that is less eroded than the area to the north, which hosts a significant part of the Virginia Ag resource. Phase II drilling will test beneath this intercept to confirm this concept.

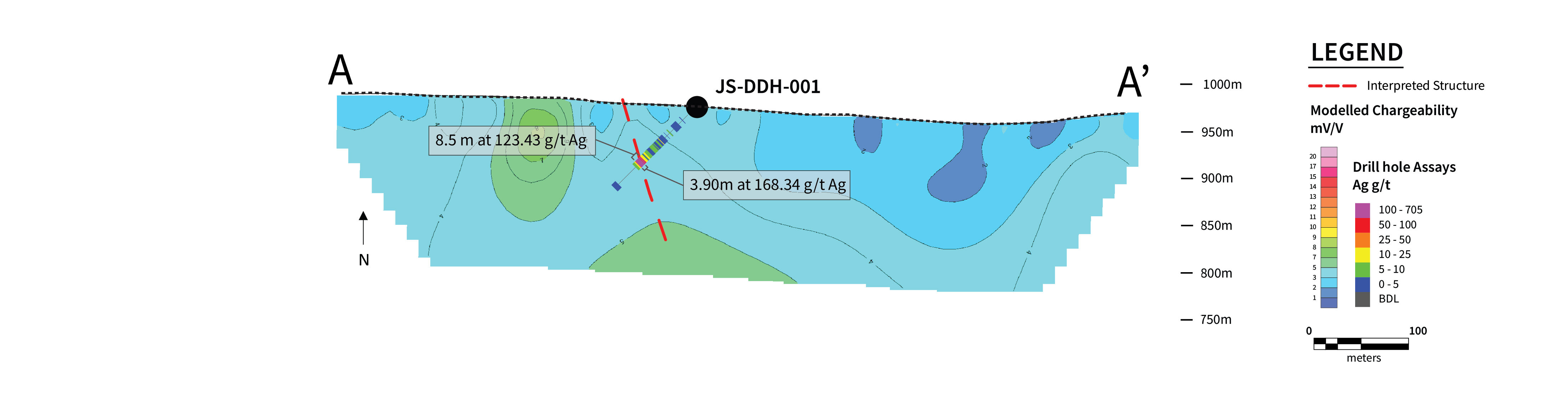

Figure 2: Cross Section looking north on IP chargeability PDP geophysics

  • Julia South Target: JS-DDH-002

The Julia South hole JS-DDH-002 intersected hydrothermal polymictic breccia with quartz vein fragments in hematite silica matrix. The existence of quartz vein fragments suggests that a potential target may exist at depth below the silica-hematite matrix breccia.

  • Julia SE Target: JSE-DDH-001

The Julia SE hole JSE-DDH-001 intersected a strongly oxidized hydrothermal polymictic breccia with wall rock and vein fragments, grading 140.27 g/t Ag over 4.20m at 70m downhole. Quartz vein fragments display colloform banding and also fine crystalline quartz textures. Some of the fragments show low temperature silica species with breccias and veinlets cutting the structure hosting a peak sample of 483 g/t Ag over 0.35m. The presence of banded vein fragments mixed with polymictic wall rock breccia suggests that these mineralized fragments have been sourced from deeper in the structure, which requires deeper drilling.

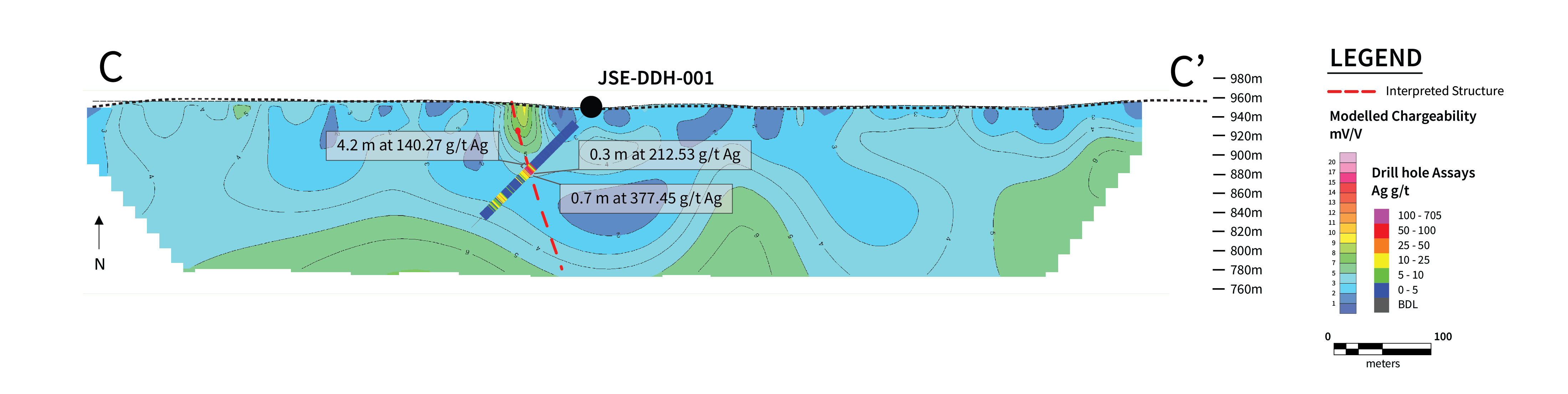

Figure 3: Cross Section looking north on IP chargeability PDP geophysics

  • Martina SE Target: MSE-DDH-002

The Martina SE hole MSE-DDH-002 intercepted 4m at 48.62 g/t Ag and 2.45m at 65.7 g/t Ag including 0.85m at 111.03 g/t Ag, which was hosted in a zone of strong brecciation (fault breccia?) crosscut by channels of hydrothermal polymictic breccias and massive cryptocrystalline quartz veinlets, returning up to 135 g/t Ag over 0.55m.

Figure 4: Cross Section looking North on IP chargeability PDP geophysics

  • Martina SE Target: MSE-DDH-003

The Martina SE hole MSE-DDH-003 hosts a 1m wide weakly banded sulfide rich (galena) vein with micro crystalline quartz and MnOx cavity infilling discrete fractures with up to 596.54 g/t Ag over 0.3m. This banded vein with hematite/limonite seams hosts values of 16.05m at 63.97 g/t Ag including 0.9m at 352.32 g/t Ag.

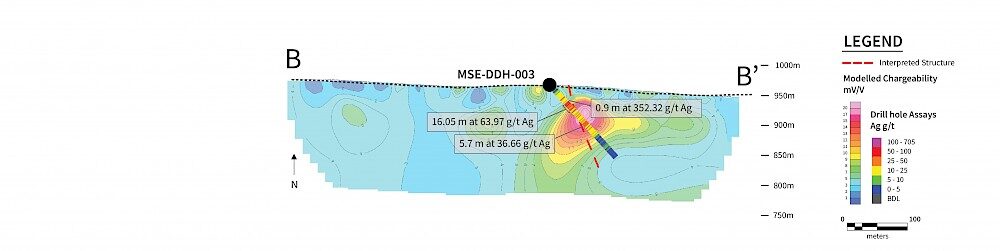

Figure 5: Cross Section looking north on IP chargeability PDP geophysics

  • Ely Central Target: EC-DDH-002

The Ely Central hole EC-DDH-002 intercepted hydrothermal breccia with wall rock fragments returning up to 60 g/t Ag and outward halos of crackle hydrothermal breccias with silica hematite cement with up to 30 g/t Ag. As mentioned above, these hematite cemented breccias are generally believed to be high up in the  vein system or represent weaker mineralized sections of the hosting structure between the mineralized shoots. A lower grade, anomalous intersect of 3.00m at 50.14 g/t Ag was returned from this hole.

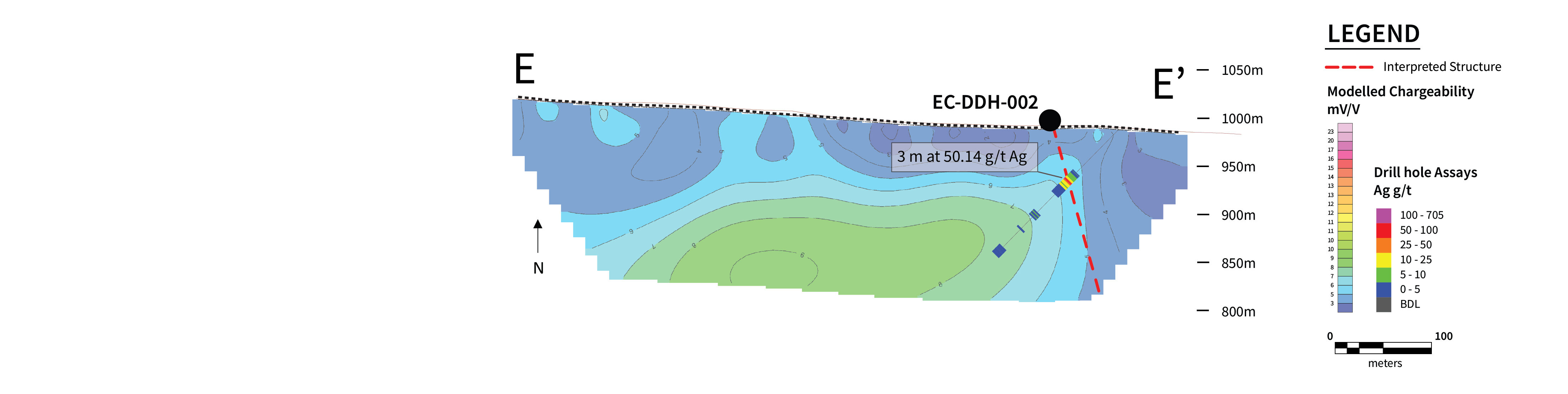

Figure 6: Cross Section looking north on IP chargeability PDP geophysics

  • Martina SW Target: MSW-DDH-001

The Martina SW hole MSW-DDH-001 intercepted hydrothermal polymictic breccia with quartz vein fragments in hematite silica matrix (fault zone?). The structure hosts stockworks and crackle brecciation with a low grade but anomalous intersect of 1.10m at 33.61 g/t Ag.

Five holes failed to intersect significant mineralization, including two holes at Eli Central, one hole at Magi, the second hole at Naty Extension and a scout hole on a geophysical target in between the Maos and Johanna targets.

Table 1: Virginia Final Phase I Significant Intercepts

Hole ID

From

To

Interval (m)1

Ag g/t2

Ag x Interval3

Cut-off4

JS-DDH-001

71.10

79.60

8.50

123.43

1049

30 g/t

Including

71.10

79.00

7.90

130.41

1030

63 g/t

           Including

75.10

79.00

3.90

168.34

657

150 g/t

MSE-DDH-003

39.00

41.00

2.00

40.43

81

30 g/t



48.95

65.00

16.05

63.97

1027

30 g/t

Including

49.57

54.41

4.84

119.03

576

63 g/t

           Including

49.87

50.77

0.90

352.32

317

150 g/t



62.90

65.00

2.10

37.39

79

30 g/t



68.35

70.23

1.88

45.31

85

30 g/t

Including

69.93

70.23

0.30

85.88

26

63 g/t



78.10

79.74

1.64

35.67

58

30 g/t



97.30

103.00

5.70

36.66

209

30 g/t



105.70

107.20

1.50

33.69

51

30 g/t

JSE-DDH-001

67.00

68.00

1.00

98.82

99

63 g/t



71.35

75.55

4.20

140.27

589

63 g/t

Including

72.35

72.65

0.30

212.53

64

150 g/t

and

73.65

74.35

0.70

377.45

264

150 g/t

MSE-DDH-002

103.80

104.40

0.60

64.69

39

30 g/t

Including

103.80

104.10

0.30

79.74

24

63 g/t



118.35

121.00

2.65

60.10

159

30 g/t

Including

119.15

120.00

0.85

82.65

70

63 g/t



128.00

130.45

2.45

65.73

161

30 g/t

Including

128.50

129.35

0.85

111.03

94

63 g/t



134.00

138.00

4.00

48.62

194

30 g/t



141.00

142.40

1.40

36.39

51

30 g/t



144.50

145.50

1.00

30.44

30

30 g/t



146.45

147.40

0.95

37.78

36

30 g/t

EC-DDH-002

74.00

77.00

3.00

50.14

150

30 g/t

JS-DDH-002

60.05

61.00

0.95

64.44

61

30 g/t



90.00

92.20

2.20

50.12

110

30 g/t

Including

91.20

91.50

0.30

68.59

21

63 g/t

MSW-DDH-001

103.45

104.10

0.65

33.49

22

30 g/t



107.00

108.10

1.10

33.61

37

30 g/t

JC-DDH-001

no interval to report

30 g/t

JC-DDH-002

no interval to report

30 g/t

MaJo-DDH-001

no interval to report

30 g/t

MG-DDH-002

no interval to report

30 g/t

NE-DDH-002

no interval to report

30 g/t

Notes:
1 Reported interval length are down hole widths and not true widths.
Reported intervals are at the stated a cut-off grade of 30 g/t Ag (with a minimum width of 0.5m), 63 g/t Ag and 150 g/t Ag. Reported intervals may include up to a maximum of 1m individual section below cut-off grade.
3 Ag Gram Meter interval is calculated using: Ag (g/t) x down hole intersection length (m).

The higher-grade intervals were selected using the 63 g/t cut-off grade used in the NI 43-101 resource estimate.

Table 2: Virginia Final Phase I Collar Location

Hole Id

Easting

Northing

Elevation (m)

Azimuth

Dip

Depth (m)

EC-DDH-001

2428800

4739907

1006.8

100

-45

124

EC-DDH-002

2428828

4739515

990.1

280

-45

184

JC-DDH-001

2428103

4739354

1033.8

258

-45

196

JC-DDH-002

2427901

4739394

1043.6

270

-45

133

JS-DDH-001

2428512

4738196

969.7

270

-45

117

JS-DDH-002

2428506

4738123

961.3

270

-45

130

JSE-DDH-001

2428512

4738010

938.3

270

-45

142

MaJo-DDH-001

2431136

4741324

919.8

250

-45

230

MG-DDH-001

2430978

4739873

926

49

-52

302

MG-DDH-002

2431298

4739764

928.6

49

-45

120

MR-DDH-001

2428812

4738612

968.7

55

-45

90

MSE-DDH-001

2429912

4739566

973.1

65

-45

134

MSE-DDH-002

2430006

4739469

966

65

-45

180

MSE-DDH-003

2429907

4739649

972.8

65

-45

178

MSW-DDH-001

2429918

4739110

945.2

100

-45

175

NE-DDH-001

2427149

4740599

1041.9

90

-45

127

NE-DDH-002

2427094

4740598

1036.9

90

-45

160

RO-DDH-001

2428505

4739521

1007

240

-45

126




[1]Refer to Amended NI 43-101 technical report filed February 29, 2016: “Amended Technical Report, Virginia Project, Santa Cruz Province, Argentina - Initial Silver Mineral Resource Estimate” prepared by D. Earnest and M. Lechner.

About Mirasol Resources Ltd

Mirasol is a well-funded exploration company focused in Chile and Argentina. Mirasol has six partner-funded projects, two with Newcrest Mining Ltd (Chile), and one each with First Quantum Minerals (Chile), Mine Discovery Fund (Chile), Mineria Activa (Chile) and Silver Sands Resources (Argentina). Mirasol is currently self-funding exploration at two projects, Inca Gold (Chile) and Sacha Marcelina (Argentina).

For further information, contact:

Tim Heenan, interim President

or

Jonathan Rosset, VP Corporate Development

Tel: +1 (604) 602-9989

Email: contact@mirasolresources.com

Website: www.mirasolresources.com

Qualified Person Statement: Mirasol’s disclosure of technical and scientific information in this press release has been reviewed and approved by Tim Heenan (MAIG), the interim President for the Company, who serves as a Qualified Person under the definition of National Instrument 43-101.

QAQC: Mirasol applies industry standard exploration sampling methodologies and techniques. All geochemical rock and drill samples are collected under the supervision of the company’s geologists in accordance with industry practice. Geochemical assays are obtained and reported under a quality assurance and quality control (QA/QC) program. Samples are dispatched to an ISO 9001:2008 accredited laboratory in Argentina for analysis. Assay results from channel, trench, and drill core samples may be higher, lower or similar to results obtained from surface samples due to surficial oxidation and enrichment processes or due to natural geological grade variations in the primary mineralization.

Forward Looking Statements: The information in this news release contains forward looking statements that are subject to a number of known and unknown risks, uncertainties and other factors that may cause actual results to differ materially from those anticipated in our forward-looking statements. Factors that could cause such differences include: changes in world commodity markets, equity markets, costs and supply of materials relevant to the mining industry, change in government and changes to regulations affecting the mining industry and to policies linked to pandemics, social and environmental related matters. Forward-looking statements in this release include statements regarding future exploration programs, operation plans, geological interpretations, mineral tenure issues and mineral recovery processes. Although we believe the expectations reflected in our forward-looking statements are reasonable, results may vary, and we cannot guarantee future results, levels of activity, performance or achievements. Mirasol disclaims any obligations to update or revise any forward-looking statements whether as a result of new information, future events or otherwise, except as may be required by applicable law.

Neither the TSX Venture Exchange nor its Regulation Services Provider (as that term is defined in the policies of the TSX Venture Exchange) accepts responsibility for the adequacy or accuracy of this release.
